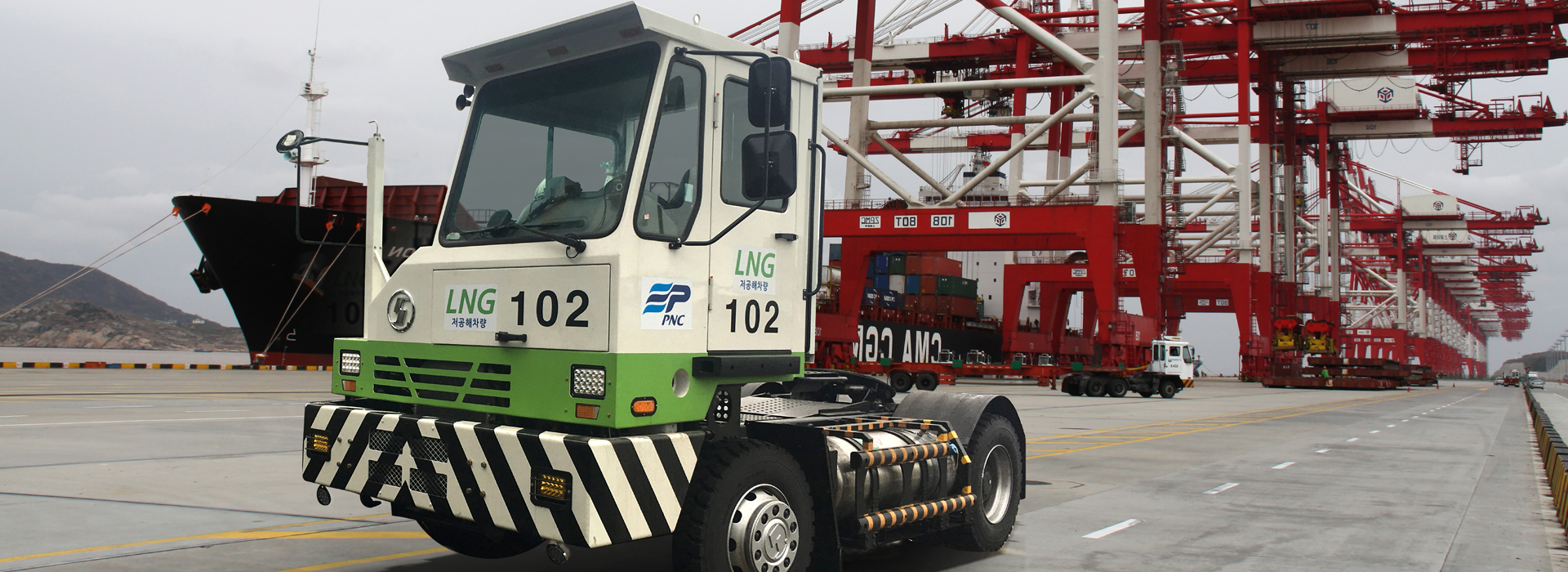

terminal tractor

Model

Diesel Terminal Tractor

Drive type

4×2

Weight

Complete kerb mass(ke)

7300

GCW(kg)

70000

Dimensions 尺寸

Overall dimensions(LxWxH)(mm)

5425x2650x3360

Wheel base(mm)

3000

Performance

Maximum speed(km/h)

 53

Minimum turning radius(m)

 7

Maximum grade ability(%)

20

Engine

Brand

WEICHAI

Model型号

WP7.240E30

Power(kw/HP)

176kW/240hp

Maximum torque(Nm)pmA

1000N-m/1200-1600r/min

Displacement

7.14L

Emission Standards

Euro IH

Option

WP7.270E40/WP7.270E51

Transmission

Brand

USA Allison

Model

3500 Hydraulic automatic transmission

Brakes

Type

Drum^SC

Service brake

Dual circuit brake

Park brake

Spring energy storage expiation brake

Steering

Type

Hydraulic mechanical steering machine

Option

ZF8098

Chassis

Type

Dimensions(mm)

300mm x 80mm x (10+5)mm

Suspension

Front suspension

leaf spring. Absorber

Rear Suspension’s

leaf spring

Axles

Brand

HANDE

Front axle

7500kg

Rear axle

Ratio

total speed ratio 11.98

Tires

Type( Standard)

11.00R20

Quantity

7

Fuel tank

Tank capacity

200L Aluminum alloy fuel tank+bumper

Electrics

Type

Single wire system 24V, Negative electrode

Battery

Two DC 12V battery 2xl80ah

Cab

Type^

LHD Terminal tractor cab

Equipment

• Large rear mirror and front under mirror
• Windshield, wiper, glass cleaner
• Manual d rive type. Electric tilting rotary
• Engine tachometer; Water temperature gauge. Odometer, Fuel meter; Oil pressure gauge, Pressure alarm; Oil pressure alarm; Steering indicator; reading 1 light, reversing alarm yellow light alarm, LED work lamp

• The top setting air-conditioner, Central electrical box  •24 y wireless terminal device for power line
• WAter bottle rack, fire extinguisher, a kick stand

Optional

Fifth wheel

Type

JOST 50
